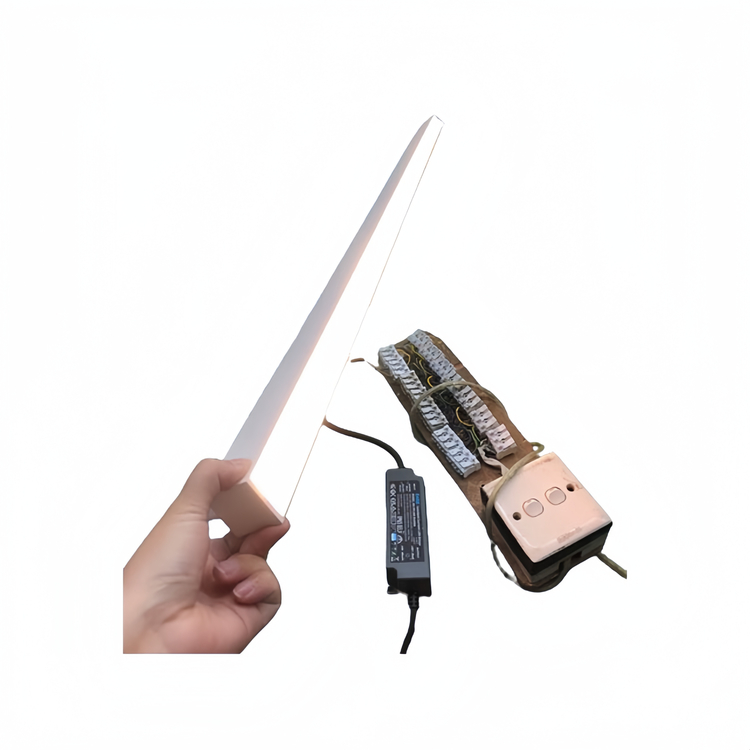

Outdoor architectural lighting faces a notoriously high failure rate. Environmental exposure destroys delicate electronics, draining project maintenance budgets rapidly. Specifiers and landscape architects constantly struggle with a core problem. They need seamless, continuous design aesthetics. At the same time, they require rugged durability to survive moisture, dust, and temperature extremes. The solution lies in specifying an IP67 Waterproof Linear Light. This fixture serves as the industry standard for high-exposure hardscapes. It bridges the gap between elegant illumination and necessary environmental resilience. We will break down how to evaluate, specify, and install these fixtures properly. Understanding these technical details prevents premature failure and ensures lasting landscape designs.
Define what environmental survival actually looks like for outdoor lighting installations. Success means the fixture operates flawlessly despite rain, dirt, and temperature shifts. The technical definition of IP67 provides a clear benchmark. The first digit, "6," indicates complete protection against contact and dust ingress under a vacuum. Dirt and debris cannot penetrate the housing. The second digit, "7," represents protection against short periods of immersion in water. This covers immersion up to 1 meter for 30 minutes under standard pressure and temperature.
Let us look at a decision framework comparing IP ratings. You need to know exactly what you are specifying to avoid catastrophic site failures.
Over-specifying IP68 for a standard pathway wastes your budget unnecessarily. However, under-specifying IP65 guarantees eventual failure in exposed environments. When you place a fixture in a trench or a recessed channel, it will experience standing water. IP67 provides the exact level of protection needed for these transient immersion events without the heavy cost of fully submersible marine-grade equipment.
Field experience shows that most specifiers misunderstand the 30-minute immersion rule. It does not mean the light breaks at minute 31. It means the testing standard guarantees no harmful water ingress under specific laboratory conditions for that duration. In real-world applications, proper site drainage works alongside the IP67 rating to keep the fixture safe.
Evaluating the physical construction of the fixture reveals its true durability. The encapsulation technology dictates how well a waterproof outdoor LED light performs over time. Polyurethane (PU) potting often degrades under harsh sunlight. Silicone potting stands as the authoritative standard. It offers superior UV resistance and high-temperature stability. Silicone also resists chemical cleaners and fertilizers commonly used in landscaping. Dual-extrusion methods using PMMA and silicone provide excellent optical clarity. They maintain long-term durability better than basic potting methods.

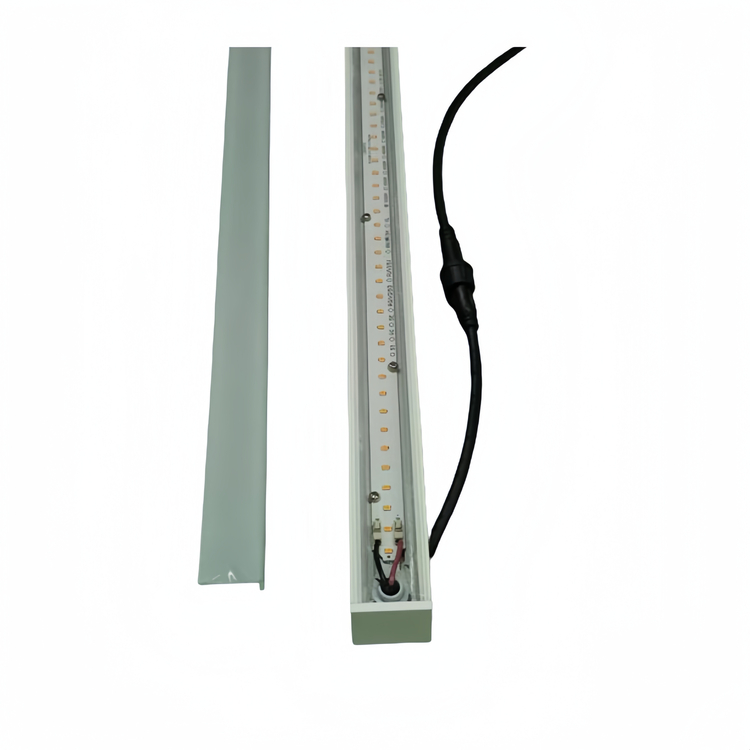

Extrusion and housing materials play a critical role. Marine-grade anodized aluminum (6063-T5) profiles deliver exceptional thermal management. They also provide necessary corrosion resistance for damp environments. The housing protects the encapsulated LED tape from physical impacts. Evaluate IK ratings carefully for your project. IK08 to IK10 ratings are essential for vandal-prone public spaces.
Cabling and connectors often represent the weakest link. Factory-sealed, injection-molded end caps are non-negotiable for commercial reliability. You must use IP67-rated threaded connectors. Anti-wicking barriers within cables are also crucial. They prevent capillary action from pulling moisture into the fixture through cut wire ends.
| Encapsulation Material | UV Resistance | Temperature Tolerance | Chemical Resistance | Best Application |
|---|---|---|---|---|
| Epoxy Resin | Poor (Yellows quickly) | Low flexibility, cracks in cold | Moderate | Indoor only |
| Polyurethane (PU) | Moderate | Good flexibility | Low (Degrades with fertilizers) | Sheltered outdoor |
| Silicone Co-Extrusion | Excellent (No yellowing) | High (-40°C to +80°C) | High | Exposed landscape projects |
When inspecting a fixture sample, look closely at the cable entry point. If you see standard heat shrink tubing instead of a molded silicone boot, reject it. Water will eventually bypass heat shrink. The thermal expansion and contraction of the aluminum housing will break weak seals. Commercial-grade fixtures use mechanical glands combined with potting compound to ensure the cable entry remains watertight for a decade or more.
Integrating fixtures into handrails, step treads, or low-level bollards enhances pedestrian safety. Effective park pathway lighting requires careful planning. You must address compliance with ADA regulations regarding glare and light trespass. Uniform light distribution prevents dark spots and tripping hazards.
Linear lights excel at grazing textured stone or concrete walls. This technique adds striking depth to nightscapes. You absolutely need an IP67 rating when fixtures mount at-grade or in-ground. Water naturally pools in these areas before draining away.
Ground-recessed drive-over and walk-over installations demand specific parameters. Flush-mount in-ground landscape linear lighting requires high load-bearing capacity. Check the static weight ratings for expected pedestrian or vehicular traffic. Integrated drainage bases are mandatory to prevent water accumulation.
Clarify the boundary between splashing and submersion in landscape design. Splashing and mist make IP67 acceptable. Permanent submersion requires IP68. Coastal zones introduce the threat of salt-spray. Coastal environments require fixtures with salt-mist resistant certifications like ASTM B117.
Consider the specific challenges of retaining walls. When you mount a linear fixture at the base of a wall, it sits in the splash zone. Dirt, mud, and debris will cover the lens during heavy rain. The IP67 rating ensures that when maintenance crews pressure wash the hardscape, the fixture survives the indirect spray and the subsequent pooling water.
Align technical specifications directly with your project goals. Calculate the required lumens per foot carefully. Ambient pathway illumination requires far fewer lumens than dramatic structural grazing. Select optics to target light precisely and control light spill. Options include 15°, 30°, 60°, or asymmetric wall-wash lenses.
Color consistency matters greatly in outdoor settings. Specify tight MacAdam Ellipse binning of 3-step or better. This prevents noticeable color shifts across continuous linear runs. Evaluate the Color Rendering Index (CRI 90+) and R9 values. High values ensure accurate rendering of foliage, masonry, and architectural materials. For sensitive coastal installations, specify wildlife-friendly narrow-spectrum amber lighting (590-595nm).
Voltage drop impacts long-run scalability. Compare 12V, 24V, and 48V systems. A 24V or 48V system is mandatory for long landscape runs. Higher voltage prevents dimming at the far end of the run.
| System Voltage | Max Run Length (Typical) | Best Application |
|---|---|---|
| 12V | Up to 16 feet (5m) | Short, localized accent lighting. |
| 24V | Up to 32 feet (10m) | Standard landscape pathways and walls. |
| 48V | Up to 65 feet (20m) | Long continuous architectural runs. |
Evaluate compatibility with commercial dimming protocols. Standard options include 0-10V, DALI, and DMX512. DMX512 is critical for dynamic RGBW color-changing linear installations. Always verify product listings and certifications. Look for UL 1598 for Luminaires and UL 2108 for Low Voltage Lighting Systems in Wet Locations. Ensure CE, RoHS, and DarkSky compliance where applicable.
When specifying drivers, remember that the driver itself needs protection. Do not bury a non-rated power supply in the dirt. Use NEMA 4X enclosures for remote drivers, and keep wire runs within the manufacturer's specified limits to avoid excessive voltage drop. Use heavy-gauge direct burial wire for all underground connections.
Address common points of failure in the field to protect your installation. Improperly installed mounting channels easily trap water. This creates a "bathtub effect" that effectively submerges an IP67 fixture beyond its 30-minute rating. Implement physical mitigation tactics immediately. Drill weep holes and install gravel drainage beds. Use angled mounting and ensure proper substrate preparation.
Extreme outdoor temperature swings cause materials to expand and contract. Different materials expand at different rates, potentially breaking waterproof seals. Breathable venting membranes, like Gore vents, equalize internal pressure. They prevent internal condensation without sacrificing the IP67 rating. You must also use flexible mounting clips. Leave structural expansion gaps in continuous runs.
Avoid field cutting whenever possible. Cutting, soldering, and sealing fixtures on-site carries a high risk of compromising the IP67 rating. Advocate strongly for factory-cut, IP67-molded-to-length runs. Factory customization protects your project warranties and ensures long-term reliability.
Contractors often ignore thermal expansion. An aluminum channel sitting in direct sunlight will expand significantly. If you butt the channels tightly against each other without a gap, they will buckle. This buckling twists the linear light inside, tearing the silicone end caps and allowing water to enter. Always leave a 1/8-inch gap between channel sections.
Another major risk involves the power feed connections. Installers sometimes use standard wire nuts wrapped in electrical tape for underground connections. This guarantees failure. You must use silicone-filled waterproof wire nuts or IP68-rated junction boxes for all splices. Capillary action will pull water from a poorly sealed splice directly up the wire jacket and into the LED fixture.
An IP67 linear light remains the most balanced, reliable choice for exposed landscape architecture. This holds true provided the encapsulation, housing, and connectors meet commercial-grade standards. Proper specification and installation dictate the lifespan of the system.
Take the following steps to move your project forward:
A: No. An IP67 rating only protects against temporary immersion up to 1 meter for a maximum of 30 minutes. For permanent submersion in pools, ponds, or active fountains, you must specify an IP68-rated fixture.
A: High-quality fixtures typically offer an L70 or L80 lifespan exceeding 50,000 hours. Actual longevity depends heavily on efficient thermal management and the UV stability of the silicone encapsulation used in the manufacturing process.
A: We strongly advise against field cutting for commercial projects. Always order factory-sealed lengths. If field cutting is absolutely unavoidable, you must follow strict cleaning protocols, use dedicated silicone end-caps, and allow marine-grade sealants to cure fully before installation.
A: Failures often result from the "bathtub effect" where mounting channels lack weep holes and trap water. Capillary action can also draw moisture into the fixture through unsealed power feed cables or compromised end caps.
A: Yes, provided the fixture utilizes UV and temperature-stable silicone. Avoid PVC or PU encapsulation, as these materials can crack in freezing temperatures and allow water ingress during frequent freeze-thaw cycles.
A: No. The IP rating of the light fixture does not apply to remote drivers. Power supplies require their own IP67 or IP65 rating, or they must be housed safely within a secondary NEMA 3R or 4X weatherproof enclosure.
