Applications Of Custom Shapes Linear Lighting

Transitioning from standard fluorescent tubes to custom LED linear systems requires navigating complex architectural, structural, and electrical variables. Designers constantly seek innovative ways to illuminate commercial interiors dynamically. Modern lighting solutions offer tremendous creative freedom.

While the design flexibility of custom shapes linear lighting allows for three-dimensional configurations and seamless space transitions, improper specification creates serious risks. Without careful planning, you might face significant installation delays, severe glare issues, and incompatible control systems. Moving light seamlessly from a ceiling down to a wall and into a floor demands absolute precision.

This guide provides architects, lighting designers, and facility managers with an evidence-based evaluation framework. We will help you evaluate form factors, complex optical requirements, and rigid mounting realities before finalizing any procurement. You will learn exactly how to balance visual aesthetics and structural limitations safely.

Key Takeaways

• Modularity over complete custom fabrication: Utilizing standardized geometric profiles (like hexagon linear or triangle linear modules) achieves complex tessellations with lower lead times and higher predictability than fully bespoke bends.

• Mounting dictates project timeline: Recessed trimless (mud-in) designs offer a "see light without light" aesthetic but require specialized drywall finishing and precise ceiling load calculations, significantly increasing labor costs.

• Control protocol alignment is non-negotiable: Specifying 0-10V dimming in retrofits without existing low-voltage wiring is a common failure point; phase dimming or wireless mesh (e.g., Casambi) often proves safer for historical renovations.

• Ergonomics define commercial viability: High-lumen output must be paired with micro-prismatic lenses or acoustic dampening materials in corporate environments to maintain a UGR (Unified Glare Rating) of <19.

Structural and Spatial Applications of Custom Shapes Linear Lighting

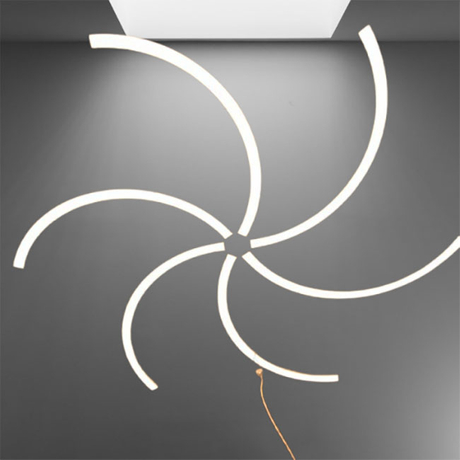

Traditional lighting grids trap designers in rigid 90-degree layouts. Organic curves and sharp zig-zags break these limitations entirely. They solve distinct spatial challenges where straight runs fail. Multi-plane intersections create striking architectural features. You can guide visitors intuitively through complex floor plans using illuminated pathways.

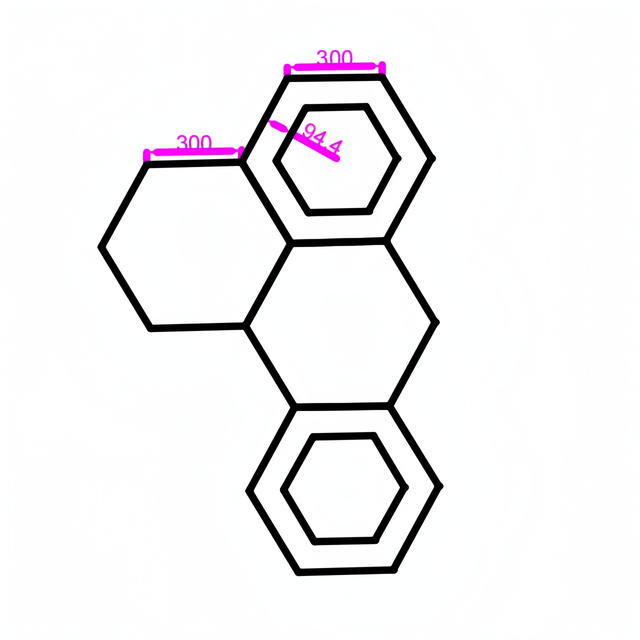

Geometric modularity provides a smarter specification approach. You can build scalable, honeycomb-style focal points using hexagon linear and triangle linear configurations. They populate hotel lobbies and expansive corporate ceilings beautifully. This modular strategy avoids heavy custom-machining fees. Standardized angle nodes snap together. They form predictable, tightly toleranced joints.

Continuous multi-plane illumination represents a major design trend. Planners design runs spanning recessed wall slots directly into suspended ceiling lines. You experience a continuous ribbon of light across the room.

Implementation risk: You need exact alignment of corner connectors. Hidden driver placements are mandatory. Otherwise, the seamless aesthetic breaks down quickly due to visible dark spots at the intersection points.

Applying strict proportion principles ensures spatial harmony. Designers rely heavily on the "two-thirds rule". Consider these spatial steps when planning your arrays:

1. Measure the primary piece of furniture below the light (e.g., a boardroom table or reception desk).

2. Calculate exactly two-thirds of that total length.

3. Size the geometric luminaire array to match this exact dimension.

4. Center the fixture directly over the functional workspace to maintain visual balance.

Scenario-Driven Specification Criteria

Different environments demand highly specific optical configurations. You must tailor your specifications to the psychological and functional needs of the space.

Corporate workspaces demand high visual acuity. Comfort remains paramount for daily productivity. Therefore, office linear fixtures require precise direct/indirect light distribution. Combining uplighting and downlighting reduces harsh shadows across desks. Strict UGR (Unified Glare Rating) compliance under 19 prevents monitor glare. It also fights occupant eye fatigue effectively. Open-plan layouts greatly benefit from integrated acoustic linear fixtures. Manufacturers wrap these fixtures in PET felt materials. They absorb ambient noise while delivering high-quality illumination.

Retail and hospitality spaces focus heavily on mood creation. They rely on architectural material enhancement to drive customer experiences. Evaluate high CRI (Color Rendering Index) options above 90. True color representation makes merchandise pop. Wall-washing optics highlight natural stone or wood textures beautifully. The light draws attention to the architectural finishes rather than the fixture itself.

Public corridors need distinct operational strategies. Asymmetrical light output works exceptionally well here. Dynamic color temperatures (tunable white) create visual wayfinding. They improve foot traffic flow in windowless environments. The lighting shifts cooler during the day and warmer at night. This mimics natural circadian rhythms for occupants.

Scenario Comparison Chart

Evaluating Hardware: Mounting Realities and Deployment Risks

Mounting methods dictate the entire project flow. Choose them wisely before signing off on architectural plans.

A suspended pendant LED assembly acts as a primary architectural feature. These fixtures drop down into the visual field, commanding attention.

• Best for: High ceilings or exposed-duct industrial spaces. They excel in task-specific zoning above collaborative areas.

• Evaluation dimension: Check cable suspension limits carefully. Verify canopy sizing for remote driver housing. You must balance layered lighting. Pair geometric pendants alongside wall sconces to soften facial shadows.

Recessed integration creates hyper-clean lines. However, you must choose strictly between trimless and flanged deployment styles.

• Trimless (Mud-in): This delivers a high-end, zero-edge aesthetic. It requires deep coordination between electricians and drywall contractors. Implementation risk: The surrounding plaster remains prone to cracking if the ceiling substrate shifts over time.

• Flanged/Spackle Flange: This method is much safer for drop ceilings. It lowers installation expenses considerably. The trade-off is a visible metallic border outlining the acrylic lens.

Surface-mounted solutions are highly pragmatic. They work best for low ceilings. Solid concrete slabs make recessing physically impossible. Trade-offs include higher visibility of the fixture's aluminum body. Junction boxes also remain fully exposed, requiring careful conduit painting to match the ceiling deck.

Technical Architecture: Photometrics, Power, and Controls

Internal engineering determines long-term reliability. You must look beyond the exterior geometric shape.

Thermal management dictates the lifespan of internal LED diodes. Structural aluminum profiles enable vital passive heat dissipation. The metal acts as a massive heat sink. Thinner, minimalist profiles look incredibly sleek. However, they sacrifice critical thermal mass. This limitation restricts maximum lumen output. Overheating degrades the diodes quickly, leading to premature color shifting.

Optical lens selection shapes the actual light beam hitting the floor. You typically choose from three primary options:

1. Frosted acrylics: Provide a soft, ambient spread ideal for general illumination.

2. Micro-prismatic diffusers: Offer aggressive glare reduction necessary for computer-heavy environments.

3. Louvered reflectors: Deliver highly focused task beams for precise, localized work.

Dimming protocol matching is absolutely critical. You must map lighting controls to the existing building infrastructure. Advanced commercial buildings utilize DALI or DMX512 networks. Legacy wiring retrofits generally require simple phase-dimming. Evaluate daylight harvesting integration thoroughly. Add occupancy sensors seamlessly into the extrusion. This compliance helps you meet stringent energy codes like Title 24 and ASHRAE.

Best Practice: Always confirm control compatibility during the schematic design phase. Request a mock-up testing the chosen dimmer switch against the specific LED driver.

Common Mistake: Specifying 0-10V dimming in historical buildings without planning for new low-voltage cable pulls. This results in walls being torn open unexpectedly.

Procurement Framework: Vetting OEM/ODM Manufacturer Capabilities

Sourcing customized architectural fixtures requires strict vendor vetting. Not all manufacturers possess the necessary fabrication tolerances.

Review engineering tolerances and on-site adjustability first. Compare factory-cut extrusions against field-cut options. Verify manufacturer joinery techniques. They must provide seamless, light-leak-free connections for custom angles. Poor joints leak harsh light bleeds through the seams, ruining the design intent.

Assess driver servicing access thoroughly. Consider the long-term maintenance reality for the facility team. Are LED drivers integrated permanently inside the extrusion? This requires complete fixture disassembly for routine replacement. Remote drivers offer a superior alternative. However, they require accessible ceiling panels up to 50 feet away. You must designate an accessible utility closet or drop-ceiling hatch for these power supplies.

Acknowledge baseline manufacturing lead times realistically. Highly customized non-standard shapes require 6 to 10 weeks for delivery. They also complicate localized warranty replacements since backup parts are rarely kept in local stock. Shortlist vendors actively. Focus on those offering a vast library of "standardized custom" geometric nodes.

Vendor Evaluation Checklist

Conclusion

The operational success of a custom shapes linear lighting configuration hinges on deep structural coordination. Visual novelty matters far less than rigorous technical execution. You must perfectly align structural load capabilities, remote driver placement, and strict glare control metrics.

Your next steps should involve aggressive verification. Advise your specifiers to request physical corner-joint samples immediately to inspect the light-leak tolerances. Demand comprehensive photometric (.ies) files to run accurate DIALux simulations. Finally, ask for detailed wiring schematics from manufacturers before approving any preliminary shop drawings.

FAQ

Q: Are custom shapes linear lights difficult to maintain compared to standard troffers?

A: They present unique maintenance challenges. Replacing standardized troffer bulbs is simple. Custom fixtures often require replacing specific factory-cut LED tape segments and drivers. Remote driver accessibility becomes critical here. If drivers are buried inside complex extrusions, maintenance teams must dismantle the entire geometric shape. Always specify remote, easily accessible drivers to minimize future service disruptions.

Q: Can triangle and hexagon linear fixtures be installed in drop ceilings?

A: Yes, but you must select the correct mounting type. T-grid compatible flanged versions rest easily within standard acoustic tile layouts. However, heavy suspended configurations present challenges. Acoustic tiles cannot support significant weight. You must anchor suspension cables directly to the true structural concrete ceiling above the grid to safely support geometric arrays.

Q: What is the minimum drop required for a pendant LED custom shape?

A: Suspension lengths depend heavily on your light distribution goals. Direct-only fixtures need roughly 12 to 18 inches of clearance for standard canopy housings. Direct/indirect fixtures require more space. They need a minimum drop of 18 to 24 inches. This allows upward-facing light to spread evenly across the ceiling without creating harsh hot spots.

Q: How does trimless "mud-in" installation impact project timelines?

A: Trimless installations extend project schedules significantly. The process requires mounting the bare extrusion first. Drywall contractors then apply multiple coats of plaster over the mud-flange. Each plaster coat requires proper curing time. Workers must sand the surface perfectly smooth before final painting. General contractors must factor these sequential, time-intensive steps into their baseline estimates.
